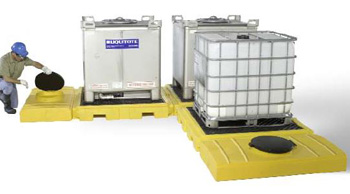

Ultra-Modular IBC SpillPallets Low Cost Spill Containment for Multiple IBC Tanks

New Ultra-Modular IBC SpillPallets provide low cost spill containment
for multiple IBC tanks. Standard offerings include: 2-tank, 3-tank, 4-tank and 5-tank indoor and outdoor models. In addition, components may be purchased separately to allow users to "build-your-own" configurations for indoor models.

Each IBC tank sits on a heavy-duty spill pallet that offers a Uniformly Distributed Load Capacity of 9,000 lbs. Each of the low profile spill pallets has a containment capacity of 75-gallons and measures 62" x 62" x 8.75'H.

To increase containment capacity, a 65-gallon capacity Expansion Tank is available. "Flow-through" bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and Expansion Tanks together. This patented feature allows spills to be channeled throughout the containment system, thereby "borrowing" containment capacity from adjacent spill pallets and Expansion Tanks.

Any number of the modular spill pallets can be connected together with the bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next.

Connecting an Expansion Tank to a spill pallet also requires two (2) bulkhead fittings. Bulkhead fittings are included with each 2-, 3-, 4-, or 5-tank model. Once five (5) or more spill pallets are connected together, the total containment capacity is 375 gallons minimum and does not require use of an Expansion Tank to meet the spill containment regulations.Low Cost Spill Containment for Multiple IBC Tanks.

Ultra-Modular IBC SpillPallets are constructed of 100% polyethylene, eliminating the potential for rust and corrosion. They offer excellent chemical resistance to a broad range of chemicals including acids, solvents and oils.

Indoor Models help facilities comply with newly-revised SPCC (Spill Prevention, Control and Countermeasures) Regulations, EPA Container Storage Regulation 40 CFR 264.175, 264.177(c) and 265.177(c). Outdoor Models comply with these regulations and Stormwater Management Regulations (NPDES). Outdoor Models are considered a "Best Management Practice" (BMP) for providing effective stormwater management.

INDOOR ULTRA-MODULAR IBC SPILLPALLETS
Part#	Description	Dimensions	Weight Capacity	Gallon Capacity	Weight
1125	2-Tank Model	186” x 62” x 8 3/4”	9,000 lbs. UDL per Pallet	280 gal.	310 lbs.
1126	3-Tank Model	248” x 62” x 8 3/4”	9,000 lbs. UDL per Pallet	355 gal.	435 lbs.
1127	4-Tank Model	279” x 62” x 8 3/4”	9,000 lbs. UDL per Pallet	365 gal.	531 lbs.
1128	5-Tank Model	310” x 62” x 8 3/4”	9,000 lbs. UDL per Pallet	375 gal.	625 lbs.
9630	SpillPallet Only	62” x 62” x 8 3/4”	9,000 lbs. UDL	75 gal.	125 lbs.

OUTDOOR ULTRA-MODULAR IBC SPILLPALLETS
Part#	Description	Dimensions	Weight Capacity	Gallon Capacity	Weight
1165	2-Tank Model	126” x 93” x 79”	9,000 lbs. UDL per Pallet	280 gal.	881 lbs.
1166	3-Tank Model	188” x 93” x 79”	9,000 lbs. UDL per Pallet	355 gal.	1258 lbs.
1167	4-Tank Model	250” x 93” x 79”	9,000 lbs. UDL per Pallet	365 gal.	1603 lbs.
1168	5-Tank Model	312” x 62” x 79”	9,000 lbs. UDL per Pallet	375 gal.	1948 lbs.
9658	Extender Kit	64” x 62” x 79”	9,000 lbs. UDL	75 gal.	375 lbs.

Options / Accessories

Part# 1117 - 2” Bulkhead Fittings (Set of 2)

Part# 1118 - Assembly Kit (Includes hole saw, arbor and set of 2 tightening tools

Part# 1125 - Expansion Tank only, 61” x 31” x 12 1/2”, Capacity: 65 gallons, 30 lbs.
