FRP Repair Parts



For Specialized FRP Installations

CCSI offers installation of specialized FRP parts and accessories, including custom manufactured parts. We offer the capability to custom design and fabricate unique solutions to meet the needs for a particular project. Contact us with your specifications.

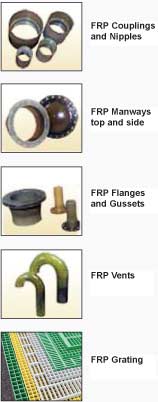

The following are samples of some of the FRP parts and accessories CCSI has available to installers.

FRP Specialized grooved or flanged connections


Specialized grooved or flanged connections
for lining tanks using Fiberglass inserts. The resultant fitting can be a FRP grooved connection or FRP flange. The pipe leading into the tank is lined with FRP as a result. This saves time and money by eliminating hand layup fiberglass over flanges and pipe interiors.


FRP-prefabricated coves


Prefabricated Fiberglass Coves
are used in rectangular tanks to line the floor to wall junction. This provides a tank with easy to clean cornors by eliminating dirt, paint or sludge build up. The cove is fully integrated into the tank lining.

Pultruded fiberglass structural tubes



Pultruded Fiberglass structural tubes are installed in dip tanks to prevent ware parts from banging or crashing into expensive piping and equipment mounted to the tank walls and sides.



Custom FRP Parts

Custom FRP weir plates

FRP stairway

A custom-made part was fabricated and installed in an automotive E Coat tank. This part insured excellent paint recirculation by avoiding splashing and good paint roll over. Custom-made adjustible weir plates are fabricated and installed inside dip tanks. The FRP plates are used to insure that proper dip tank circulation is maintained into a weir tank. Fiberglass stairways used for safe access to dip tanks with sloped ends. We use specially designed mounting systems that will not compromise the tank linings integrity.

Solution Driven.

Please contact us for more information on how we may provide solutions.
